CFF15 Aluminum Plate Filter Box | 30 PPI, 10 T/H for Ingot Casting

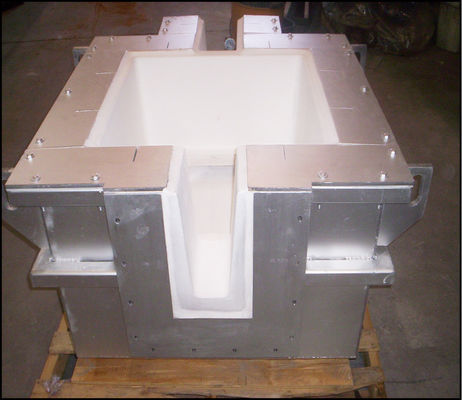

The CFF15 Plate Filter Box is a precision-engineered inline filtration system designed for continuous aluminum ingot production lines. Featuring a 30 PPI ceramic foam filter plate and a rated flow capacity of 10 tons per hour, it effectively removes particulate impurities from molten aluminum, ensuring high metal purity and superior ingot quality.
Key Features & Benefits
  • High-Efficiency Filtration: 30 PPI ceramic foam filter plates capture fine inclusions, significantly improving metal cleanliness
  • Optimized for Continuous Production: Designed for inline integration into casting lines with steady 10 T/H flow rate
  • Precise Temperature Management: PLC-controlled heating systems maintain optimal molten aluminum temperature
  • Robust Construction: High-grade materials with heating power of 60 kW and external shell temperature rise limited to ≤55°C
  • Easy Operation & Maintenance: Standard 15"x15"x1" filter plates are simple to install and replace
  • Complete Solution Provider: Full range of supporting equipment from melting to aging treatment
Technical Specifications
Parameter Specification
Model CFF15 Inline Filtration Box
Filter Plate Size 15″ x 15″ x 1″ (Standard)
Filter Porosity 30 PPI
Rated Filtration Flow 10 T/H
Heating Power 60 kW
Total Connected Power < 30 kW (System)
Power Supply 3-Phase, 380V ±10%, 50Hz
Temperature Control PLC + Atmosphere Control
Lining Preheating Speed > 40°C/hr
Max. Shell Temperature Rise ≤ 55°C
Color Standard Blue (Customizable)
Related Models CFF-17 (17″), CFF-23 (23″)
Applications
  • Continuous Aluminum Ingot Casting Lines for clean metal feed
  • Billet & Slab Production prior to direct chill casting
  • High-Purity Aluminum Alloy Manufacturing
  • Foundries & Recycling Plants for improved remelted aluminum quality
Company Capabilities
  • Established aluminum casting expertise since 2003
  • Complete product line from melting to aging equipment
  • Proven track record with 50 million RMB sales in 2021
Customer Support & Services
Pre-sales consultation, comprehensive documentation, lifetime technical support via multiple channels, and warranty coverage with free parts replacement for manufacturing defects.
Frequently Asked Questions
What is the main purpose of the CFF15 Filter Box?
Its primary function is to filter particulate impurities from molten aluminum in continuous casting lines, ensuring high-quality ingot production.
Can it handle different production capacities?
The CFF15 is rated for 10 T/H. We offer larger models (CFF-17, CFF-23) for higher capacity needs.
How is the temperature controlled?
The system uses a PLC for precise control of both the heater and protective atmosphere.
What kind of filter plates are used?
Standard 15″x15″x1″ ceramic foam filter plates with 30 PPI porosity.
What post-sales support do you provide?
Installation guidance, operational training, 1-year warranty, and lifelong technical support.
Interested in integrating a reliable filtration system into your casting line? Contact us today for detailed quotations, technical datasheets, or customized solutions tailored to your production needs.
