Thông tin chi tiết sản phẩm:
|
| Làm nổi bật: | HDR rotary flux injector 380V,rotary flux injector for smelter furnaces,15kW rotary flux injector with warranty |
||
|---|---|---|---|

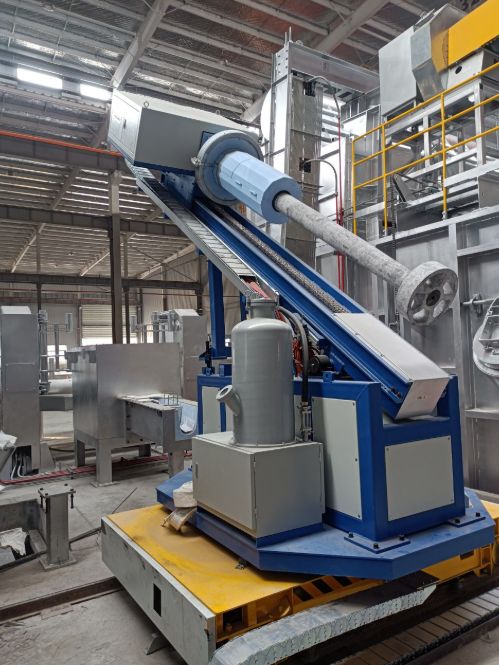

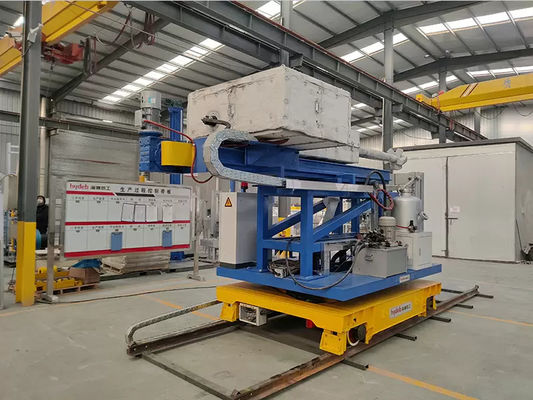

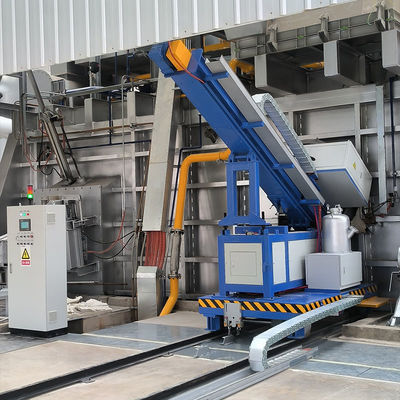

The Furnace Side Wall Rotary Flux Injector operates through small furnace wall openings, minimizing thermal loss during degassing and fluxing processes. Its sealed design allows refining gas (nitrogen/argon) to fill the space above molten aluminum, preventing oxidation.
The motor-driven graphite rotor rotates while immersed in molten aluminum, introducing high-purity nitrogen/argon. This refiner effectively breaks inert gas into micro-bubbles that disperse uniformly through the melt. The hydrogen differential pressure causes diffusion into bubbles, which rise to the surface, significantly reducing hydrogen content.
| Parameter | Value | Notes |
|---|---|---|
| Refining Gas Purity | ≥99.997% | High purity argon/nitrogen |
| Gas Pressure | 0.1-0.6 MPa | Adjustable |
| Gas Flow | 5.7-25.5 m³/h | Adjustable |
| Electrical Supply | 3 Phase, 380V, 50Hz | |
| Total Power | <15 kW | |
| Trolley Motor | 1.5 kW | |
| Rotor Shaft Motor | 11 kW | |
| Flux Feeding Motor | 0.25 kW | |
| Rotor Bevel Angle | 35° | |
| Molten Aluminum Circulation | 1.5 T/min | |
| Hydrogen Removal Efficiency | >30% | After 30-minute process |
| Flux Feeding Speed | 0-6 KG/min | |
| Rotor Speed | 100-400 RPM | VFD adjustable |
| Degassing Time | 0-99 min | Adjustable |
| Operating Temperature | 640-850°C | During refining |
